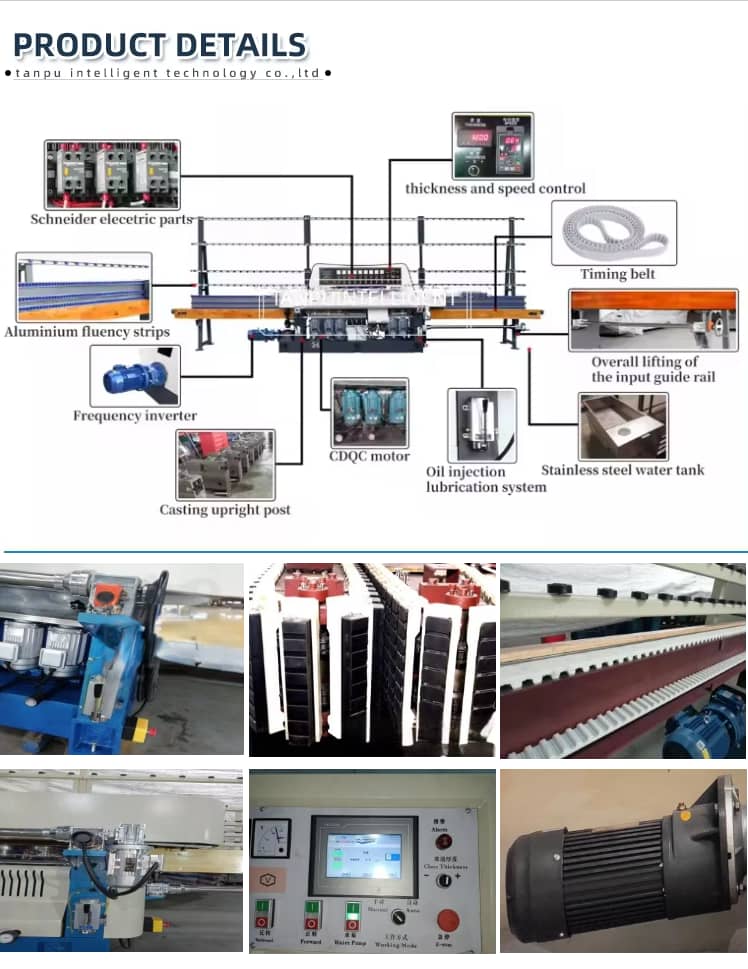

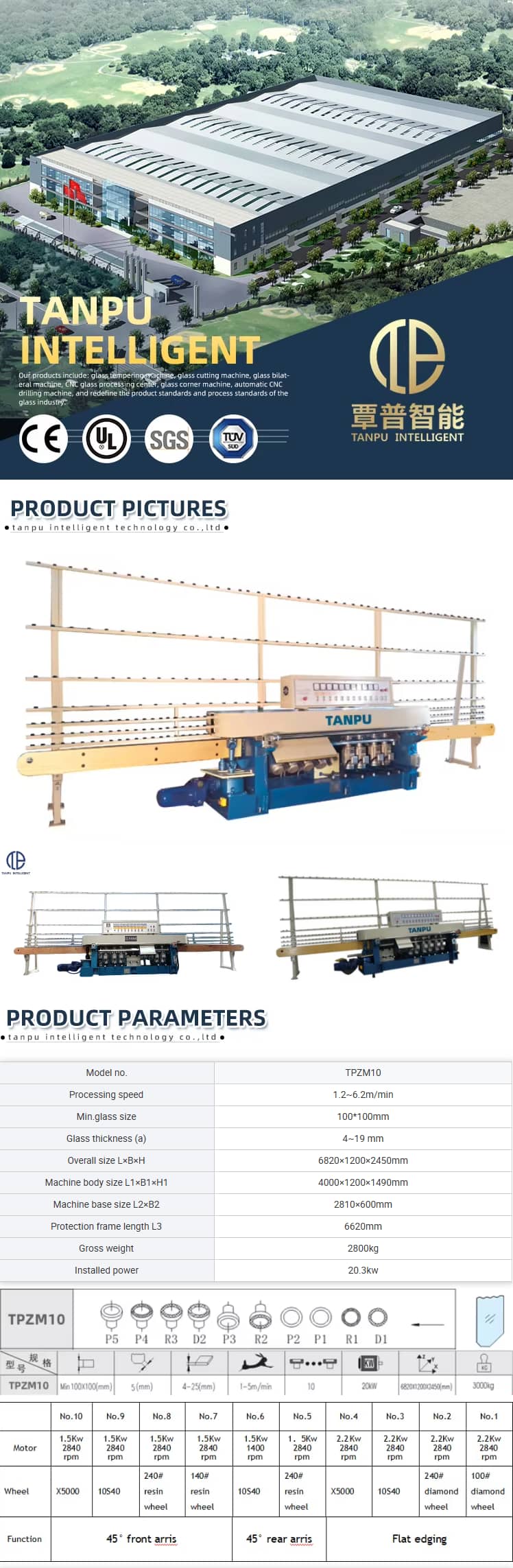

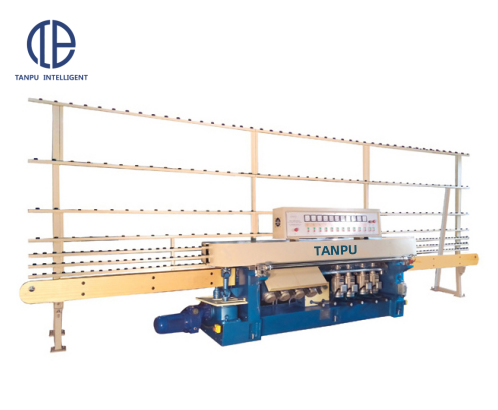

TPZM10 Glass Straight Edging Machine

The input and output guide rails use reinforced synchronous belts to transport the glass to solve the sliding phenomenon of the rear heavy glass synchronous belts;

The specially designed brush holder structure can quickly replace the brush (without dismantling the motor and water tank);

24V safety voltage control and open door power-off protection, the use and operation are more assured and safer;

The hand pump lubricates the front guide rail to move the carriage; the glass input guide rail adds a synchronous lifting mechanism;

The key structural parts such as the base, column, front guide rail and rear guide rail adopt anti-deformation casting structure; (the middle column is welded)

The 3-column structure of the main frame improves the rigidity of the machine and effectively prevents the deformation of the beam;

The main electrical components are Chint Electric; general accessories in the wearing parts market, with low cost of use;

The synchronous belt drive shaft bearing is sealed with a skeleton oil seal, and the synchronous belt drive shaft bearing seat sleeve can be easily disassembled (the drive sprocket shaft is not removed)

The grinding head carriage adopts a dovetail structure, which solves the grinding head vibration during glass processing.
